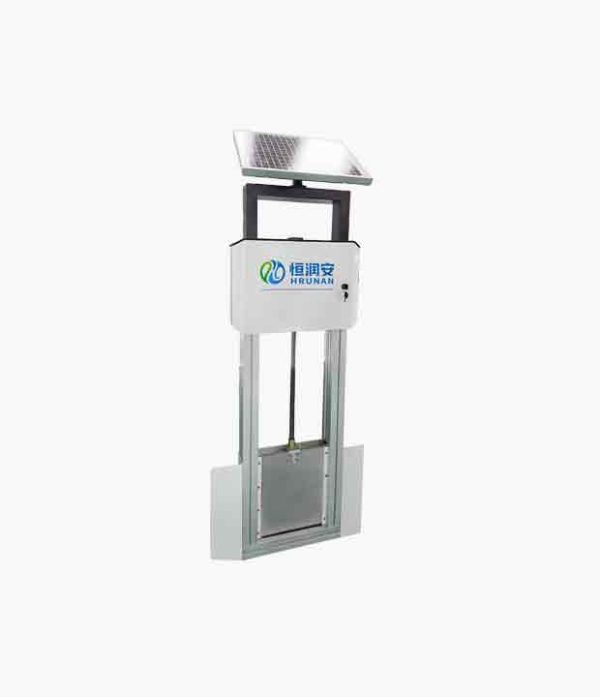

Aluminum alloy micro gate

Micro gates are suitable for use on channels with a width less than 500mm and a height less than 600mm,including capillary channels, small farmland irrigation and other small channels.

The micro gate integrates the gate body, control cabinet and solar power supply system.

Product features and advantages：
(1) Integrate the gate body, gate control and solar power supply system into one;
(2) The door frame is made of high-strength aluminum alloy, with hard anodized surface treatment, high strength and strong weather resistance;
The gate uses honeycomb aluminum strength enhancement technology;
The transmission parts are made of high-quality structural steel with chrome-plated surface, which is wear-resistant and anti-corrosion;
The water stop is sealed with silicone rubber, which has strong weather resistance and anti-aging for up to 30 years;
The slide rail is lined with high wear resistance, which has low friction and high wear resistance;
(3) Super functional controller: integrates local and remote control, and collects and transmits pictures and videos in a timely manner;
(4) Low energy consumption: using polymer low-friction motion pairs;
(5) Convenient installation and debugging: overall installation, one-click calibration;
(6) Strong environmental adaptability: working temperature -20°C to 70°C to adapt to various water qualities.

Door leaf size：300-600mm；
Sealing water height：0-1000mm；
